MICRO HDMI (F)

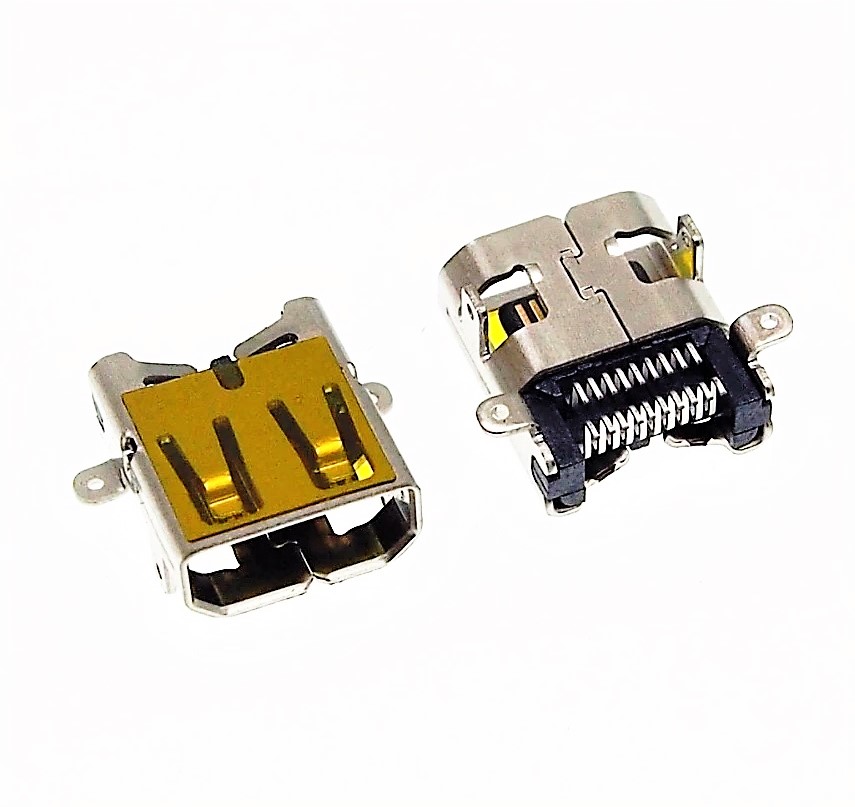

MICRO HDMI D Type Two Feet SMD Female Connector

Micro HDMI Type D Connectors.
Ideally suited for next-generation compact audio/video data PCB layout aimed at HDMI Rev.1.4 and 3D signal transmission.

ELECTRICAL:
1.VOLTAGE RATING: 40 V
2. CURRENT RATING: 0.5 AMP
3. INITIAL CONTACT RESISTANCE EXCLUDING CONDUCTOR RESISTANCE :10mΩMAX(TARGET DESIGN VALUE).AFTER TEST:30 m Ω MAX
4.INSULATION RESISTANCE: 100MΩ MIN @500V DC
5. DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MINUTE.
6.MECHANICAL PERFORMANCE,
6-1. INSERTION FORCE: 4.5kgf. MAX
6-2. WITHDRAWAL FORCE: 1.0kgf~4.0kgf.
7. LIFE TEST: 10000 CYCLES.
ENVIRONMENTAL:
1. STORAGE: -40°c TO +85°c
2. OPERATION: 0 °c TO +75°c
