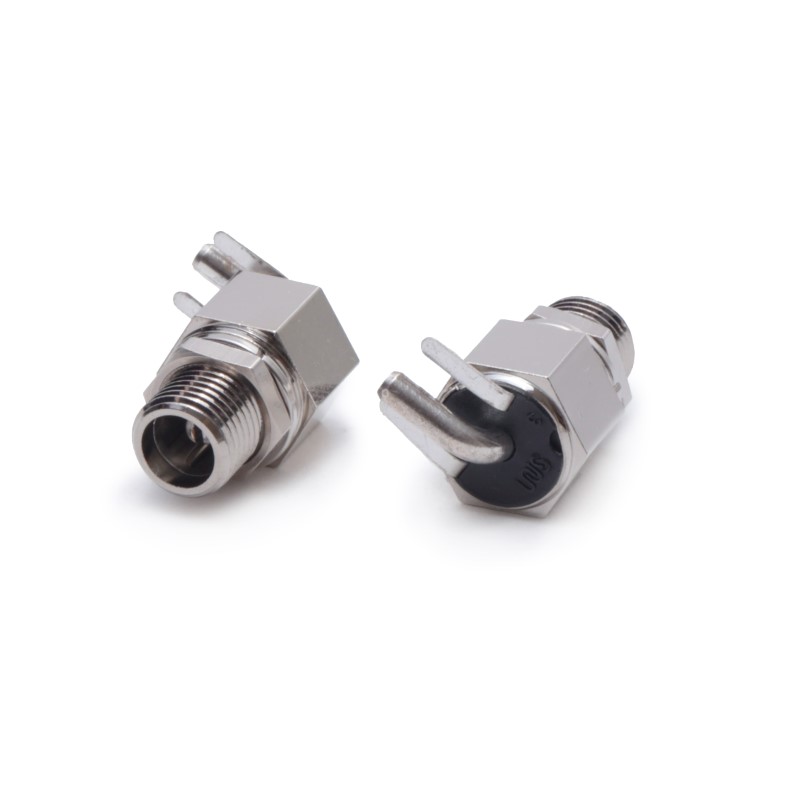

DC JACK 5.5X2.5

5.5X2.5 mm DC POWER JACK Single Port

Board mount type DC jack with screw lock type.
This product ID=2.5 mm OD=5.5mm.

1. Dielectric strength : AC 500V /1 Minute,
2,Insulatlon resistance :100MΩ or over,(DC 500V)
3,Conto.ct resistance :30MΩ or less,
4.Extractlon force :0.3~3Kg,
5.Ratecl voltage : 12,0 V
6.Ro.tecl current : 12,5A
7.Operation temperature range:-20°C~+70°C
8.Preservative temperature range:-40°C~+85°C
