TYPE C S/A

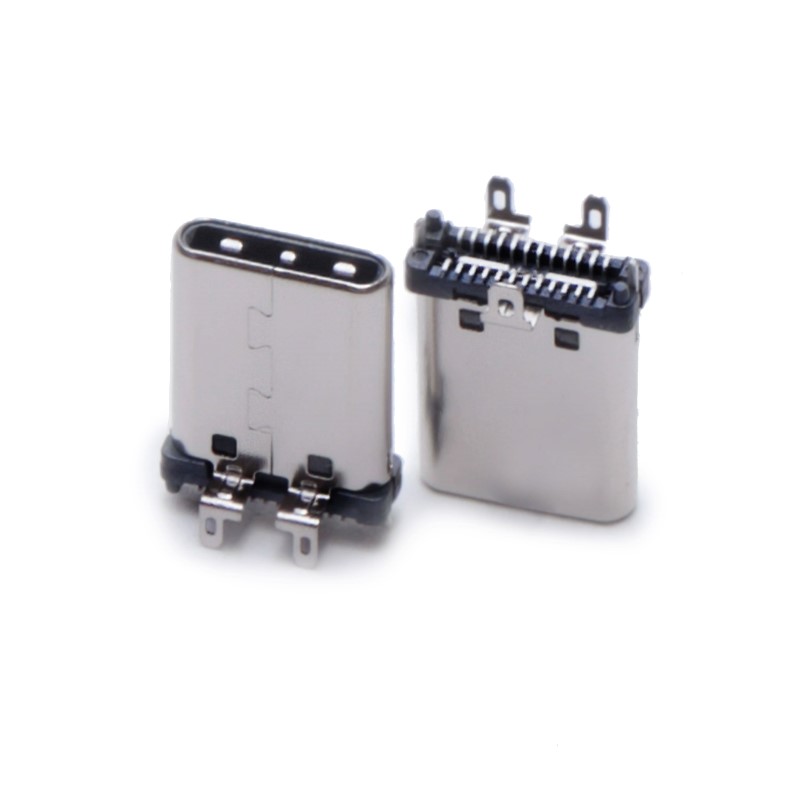

USB TYPE C SOCKET, VERTICAL, SMT

Board mount type single port USB type C connector straight type.

1.MECHANICAL PERFORMANCE,
1-1. INSERTION FORCE: 0.5~2.0kgf.
1-2. REMOVAL FORCE: 0.8kgf~2.0kgf.
1-3. DURABILITY: 10000 CYCLES.
2.ELECTRICAL PERFORMANCE,
2-1. CURRENT RATING: SEE TABLE 1VOLTAGE RATING:5.0V
2-2. LLCR:
VBUS & CND PINS AND OTHER PINS: 40mΩ/PIN MAX.SHIELD: 50mΩ/MAX.LLCR MAX C NGE OF ALL PINS: 10mΩ.
2-3. INSULATION HARESISTANCE: 100MΩ MIN
2-4. DIELECTRIC WITHSTAND VOLTAGE,AC 100V FOR 1 MINUTE
3. ENVIRONMENTAL PERFORMANCE:
OPERATING TEMPERATURE: -30℃~+85℃.
4.IR REFLOW:
THE PEAK TEMPERATURE ON THE BOARD SHALL
BE MAINTAINED FOR 10 SECONDS AT 260℃
