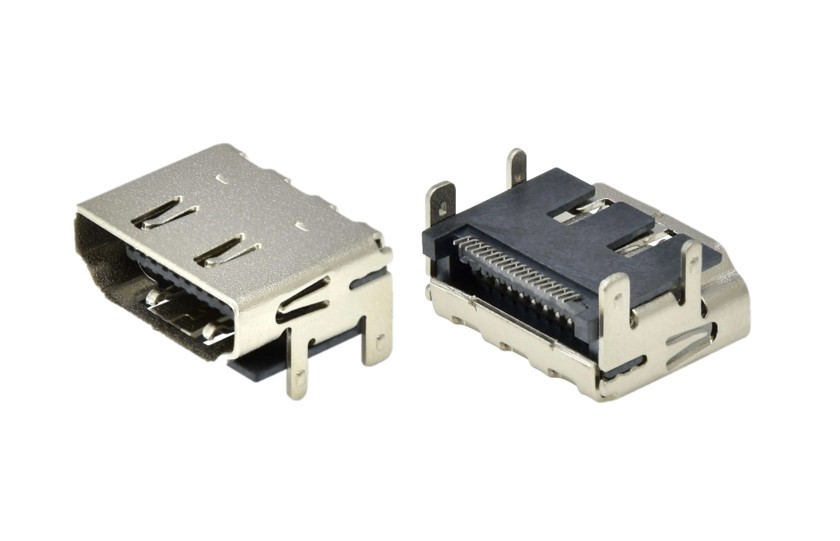

HDMI (F) R/A

HDMA A TYPE FEMALE, DIP, SINKNG Right Angle

Board mount type HDMI connector tinned type.
Fully shielded Type-A Connectors feature up to 48 Gbps bandwidth with an 8K resolution display that is compatible with HDMI v1.4 and v2.1

ELECTRICAL:
1.VOLTAGE RATING: 40 V
2. CURRENT RATING: 0.5 AMP
3. INITIAL CONTACT RESISTANCE EXCLUDING CONDUCTOR RESISTANCE : 10m ΩMAX(TARGET DESIGN VALUE).AFTER TEST:30 m Ω MAX
4.INSULATION RESISTANCE: 100MΩ MIN @500V DC
5. DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MINUTE.
6.MECHANICAL PERFORMANCE,
6-1. INSERTION FORCE: 4.5kgf. MAX
6-2. WITHDRAWAL FORCE: 1.0kgf~4.0kgf.
7. LIFE TEST: 10000 CYCLES.
ENVIRONMENTAL:
1. STORAGE: -40°c TO +85°c
2. OPERATION: 0 °c TO +75°c
