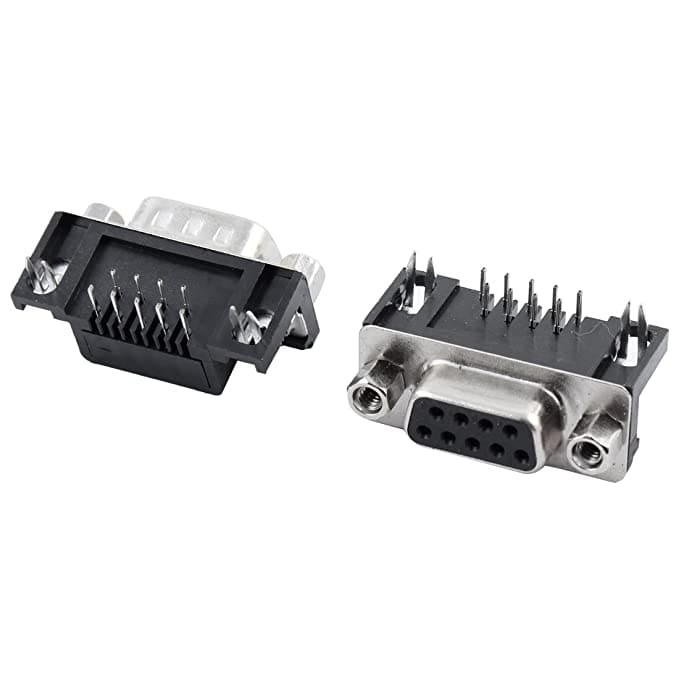

DB 9 Pin (F) R/A

D SUB 9 Pin Female Single-Port Right Angle

Board mount type 2-ROW D-SUB 9 connector with the right angle.Adapter used for communication debug
Material: Metal/Plastic

EIECRICAL SPECIFICATION
Contact Current Rating: 3 Amperes
Dielectric Withstanding Voltage:
AC 1000/60ses.r.m.s
Insulation Resistance:
5000 Megohm’s MINMUM at DC 500V
Contact Resistance :25 milliohm’s Maximum
Operating Temperature: -55℃ ~+85℃
